USD 850

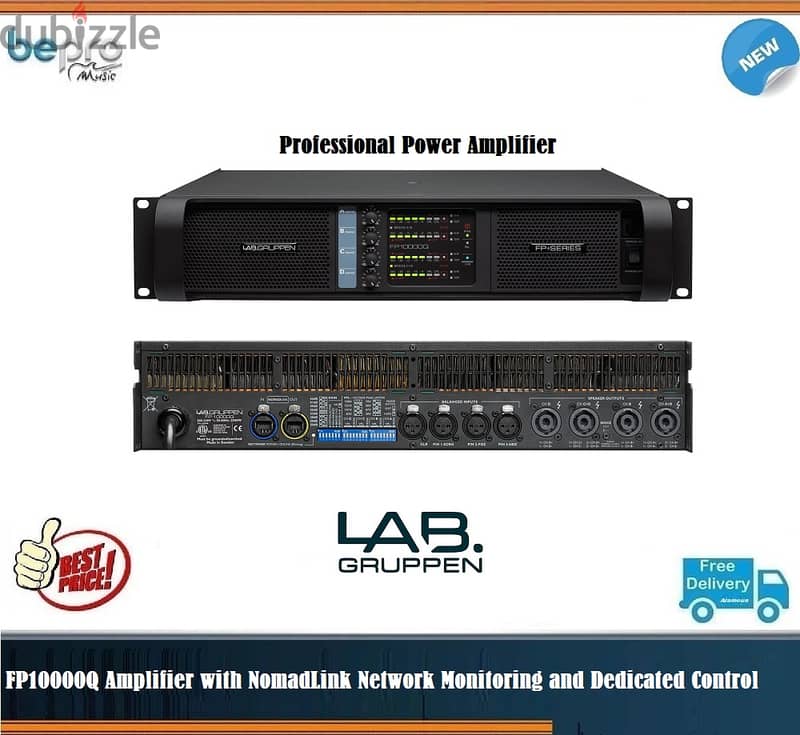

FP 10000Q 4-Channel Amplifier with NomadLink Network Monitoring
Dawhet Aaramoun, Aley
1 day agoDetails
DeliverySelf Delivery
TypeDJ Equipment
ConditionNew
Seller TypeAgency
Description
FP 10000Q 4-Channel Amplifier with NomadLink Network Monitoring and Dedicated Control for Touring Applications
Specification
Show less
General
Number of amplifier channels
4
Peak total output all channels driven
10000 W
Peak output voltage per channel
150 V
Max output current per channel
50 A peak
Max output power (all channels driven)
2 ohms
2500 W
4 ohms
2100 W
8 ohms
1300 W
16 ohms
660 W
Max output power bridged
2 ohms
Not recommended 1
4 ohms
5000 W
8 ohms
4200 W
16 ohms
2600 W
Performance
THD 20 Hz - 20 kHz at 1 W
<0.1%
THD at 1 kHz and 1 dB below clipping
<0.05%
Signal to Noise Ratio
>112 dBA
Channel separation (Crosstalk) at 1 kHz
>70 dB
Input impedance
20 kOhm
Common Mode Rejection (CMR)
>54 dB, 20 Hz - 20 kHz
Gain, Sensitivity and Limiters
VPL, selectable per ch
150.121, 101, 83, 70, 56, 47, 38 V
VPL, when bridged 2
300, 242, 202, 166, 140.112, 94, 76 V
Voltage Peak Limiter mode (per ch. )
Hard / Soft
Amplifier gain selectable (all channels) – rear-panel switches 2
23, 26, 29, 32, 35, 38, 41, 44 dB
Default gain
35 dB
Level adjustment (per channel)
Front-panel potentiometer, 31 position detented from -inf to
Connectors and Buttons
Output connectors (per ch. )
Neutrik speakON
Input connectors (per ch. )
3-pin XLR, electronically balanced
Output bridge mode
A+B - Ch. A is signal input source. A+B, C+D - Ch. ’s A and C are input source
NomadLink network
On board, 2 x RJ45 connectors IN and OUT
Intelligent fans (on/off)
Yes, depending on presence of output signal
Power on/off and Remote enable on/off
Individual switches on front-panel
Cooling
Dual fan, front to rear airflow, no filter required, temperature controlled speed
Front-panel user interface
Common
NomadLink Network; Power Average Limiter (PAL)4; Power on
Per channel
Signal present / High-impedance; -10 dB and -4 dB output signal;Voltage Peak Limiter (VPL); Current Peak Limiter (CPL): Very High Frequency (VHF); High temperature; Fault; Mute
Power
Operating voltage, 230 V / 115 V nominal 3
130-265 V / 65 -135 V
Minimum power-up voltage, 230 V / 115 V
171 V / 85 V
Power Average Limiter (PAL) 4
Yes
Soft-start / Inrush Current Draw
Yes / max. 5 A
Mains connector
230 V CE: 16 A, CEE7; 115 V ETL: 30 A Twist lock
Dimensions
Dimensions
W: 483 mm (19”), H: 88 mm (2 U), D: 396 mm (15.6”)
Weight
Weight
12 kg (26.4 lbs)
