USD 650
Dynacord CMS 1000-3 10‑channel compact mixing system
Dawhet Aaramoun, Aley
4 weeks agoDetails
DeliverySelf Delivery
TypeDJ Equipment
ConditionNew
Seller TypeAgency
Description

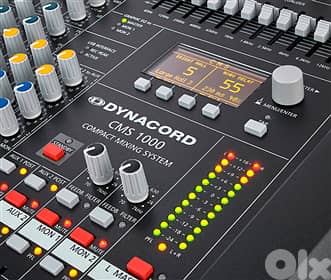

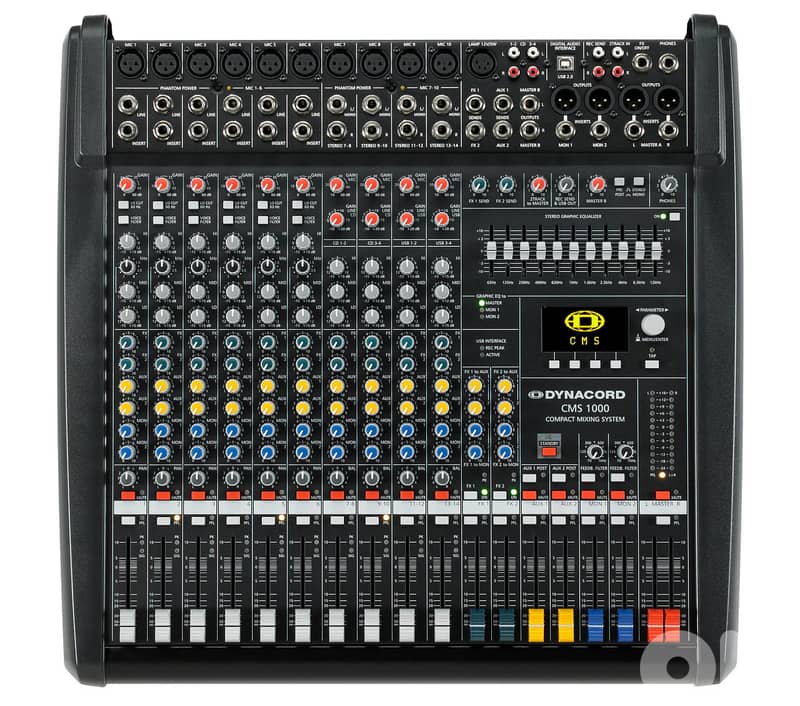

CMS 1000-3 10‑channel compact mixing system
Intuitive mixer with 10 input channels (6 Mic/Line + 4 Mic/Stereo-Line)
2 High-Quality editable effects, 100 factory and 20 user presets
Professional 4x4 24-bit / 96 kHz USB interface with MIDI
11 band stereo graphic equalizer

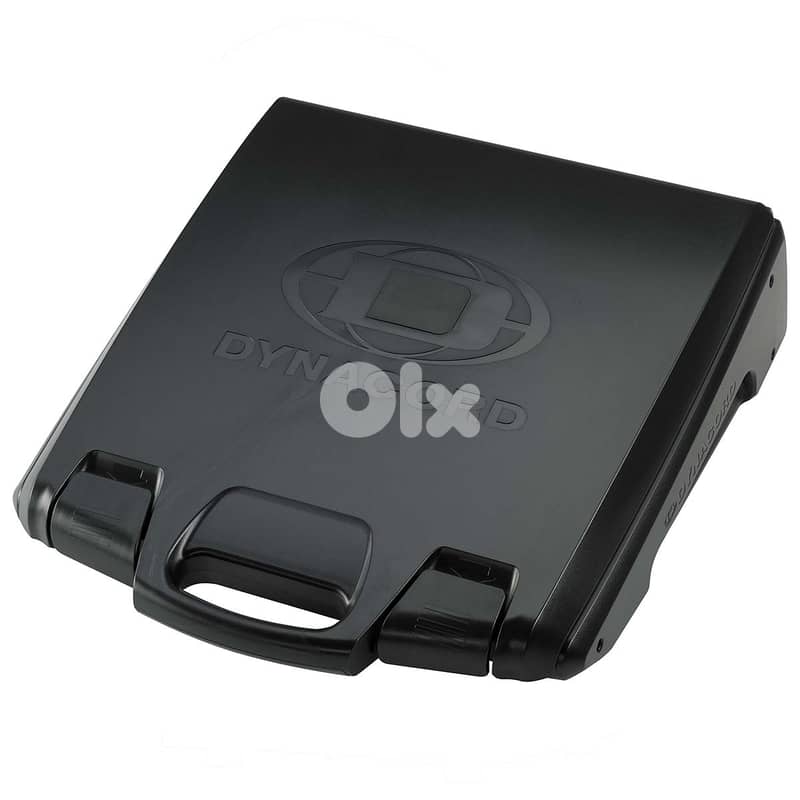

Optional robust cover-lid with integrated handle
Specifications
Channels (Mono + Stereo) 6 + 4
Auxiliarys (MON, FX, AUX) 2 Pre, 2 Post, 2 Pre/Post switchable
MIC GAIN (Mono / Stereo) 0 to +60 dB / +10 to +60 dB
Specifications
LINE/CD/USB GAIN (Stereo) -10 to +20 dB
THD, at 1 kHz, MBW = 80 kHz
MIC input to Master A L/R outputs, +16 dBu, typical < 0.005%
Frequency Response, -3 dB, ref. 1 kHz, any input to any Mixer output 15 Hz to 70 kHz
Crosstalk, 1 kHz
Fader & FX/AUX/MON-Send attenuation > 85 dB
Channel to Channel < -80 dB
CMRR, MIC input, 1 kHz > 80 dB
Input Sensitivity, all level controls in max. position MIC / LINE (Mono) / LINE (Stereo) / CD (Stereo) -74 dBu (155 µV) / -54 dBu (1.55 mV) / -34 dBu (15.5 mV) / -34 dBu (15.5 mV)
Maximum Level, mixing desk
MIC inputs +21 dBu
Mono Line inputs / Stereo Line inputs +41 dBu / +30 dBu
All other inputs +22 dBu
All other outputs +22 dBu
Input Impedances
MIC / Insert Return 2 / > 3.3
2Track Return & CD In 10
All other inputs > 15
Output Impedances
Phones 47 Ω
All other outputs 75 Ω
Equivalent Input Noise, MIC input, A-weighted, 150 ohms -130 dBu
Noise, Channel inputs to Master A L/R outputs, A-weighted
Master fader down -97 dBu
Master fader 0 dB, Channel fader down -91 dBu
Master fader 0 dB, Channel fader 0 dB, Channel gain unity -83 dBu
Equalization
LO Shelving ±15 dB / 60 Hz
MID Peaking, mono inputs ±15 dB / 100 Hz to 8 kHz
MID Peaking, stereo inputs ±12 dB / 2.4 kHz
HI Shelving ±15 dB / 12 kHz
Master EQ 11-band (63, 125, 250, 400, 630, 1k, 1.6k, 2.5k, 4k, 6.3k, 12kHz) ±10 dB / Q = 1.5 to 2.5
Power Consumption
without lamp / with lamp 45 W / 50 W
Filter
LO-CUT, mono inputs f = 80 Hz, 18 dB/oct.
VOICE FILTER, mono inputs switchable
FEEDBACK FILTER, MON 1/2 70 Hz to 7 kHz, Notch, -9 dB
Effects
Type, effects presets Dual stereo 24/48-bit multi effects processors, 100 Factory + 20 User, Tap-Delay
Remote control Footswitch, MIDI
Display 128 x 64 pixels, OLED
Digital Audio Interface
Channels 4 In / 4 Out
AD/DA Conversion, Sampling Rate 24-bit, 44.1 / 48 / 88.2 / 96 kHz
PC Interface USB2.0, Female Type B
Supported OS See documentation
MIDI Interface 5-pin DIN connector, In / Out
Protection
Mixer Outputs (Relay controlled) MON 1, MON 2, MASTER A
Switching Mode Power Supply (µC controlled) Mains Over/Undervoltage, High Temperature
Phantom Power, switchable in groups 48 V DC
Power Requirements (SMPS with auto range mains input) 100 V to 240 V AC, 50 Hz to 60 Hz
Dimensions (W x H x D, without lid), mm 510.5 x 155 x 498.5 Rack-mount: 483.0 x 135.0 x 443.7
