1 / 2
USD 995

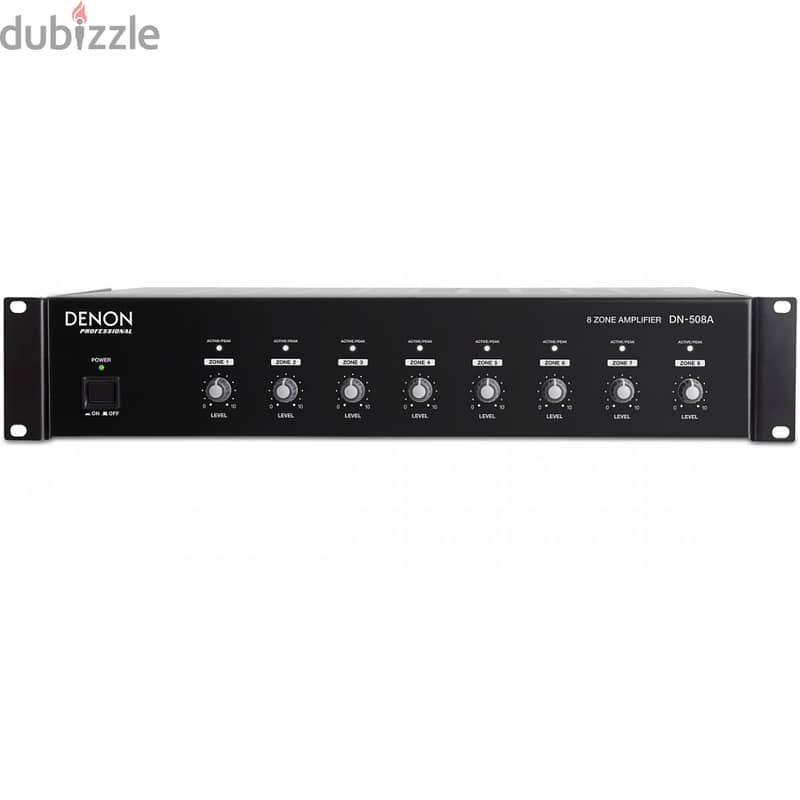

Denon Pro DN-508A 8 Zone Amplifier
Hazmieh, Baabda
5 days agoDetails
TypeOthers
ConditionNew
Seller TypeIndividual
Description
The Denon Professional DN-508A is an 8-channel zone amplifier perfect for commercial applications such as background music, paging, multi-zone entertainment, etc. It features eight channels of efficient, cool-running Class D amplification, each rated at 55 watts with less than 0.5% THD. Eurobloc connections ensure fast, reliable hook up—critical to your commercial/contractor business. There are individual volume adjustments and signal/peak indicators for every channel, giving you complete control of the system. For unsurpassed versatility, the DN-508A can be used with 70/100V systems and it also has low-impedance (4 ohm) drive capability. There is no system configuration it can’t handle! With a signal-to-noise ratio in excess of 90dB at rated power, a dynamic range of 95dB and channel separation of 60dB, the DN-508A is uniquely capable of providing clean, reliable power to multiple speakers in a demanding commercial application. It’s a perfect system companion to the DN-508MX Zone Mixer.
Features:
Eight channel (zones) inputs
Eight zone output (4 ohm, 70/100V)
55W class D amplifier per zone
Individual level control per zone
Signal/Peak indicators for each zone
Contractor-friendly Euroblock connections
Audio Specification
Output Power: >;;;;; 55W RMS (per channel, 4 Ohm load)
Frequency Response: 85 Hz – 20 kHz (at -3 dB)
Channel Separation: >;;;;; 60 dB
Input Impedance: >;;;;; 10 k?
Dynamic Range: 95dB
Range of Volume Controls: -13dBm to +26dBm
Total Harmonic Distortion
1W: <;;;;; 0.1% (1 kHz)
55W: <;;;;; 0.5% (1 kHz)
Signal-To-Noise Ratio
1W: >;;;;; 70 dB (1 kHz, 0 dB, A-weighted)
55W: >;;;;; 90 dB (1 kHz, 0 dB, A-weighted)
Input Sensitivity
1W: 100+10 mV
55W: 900+50 mV

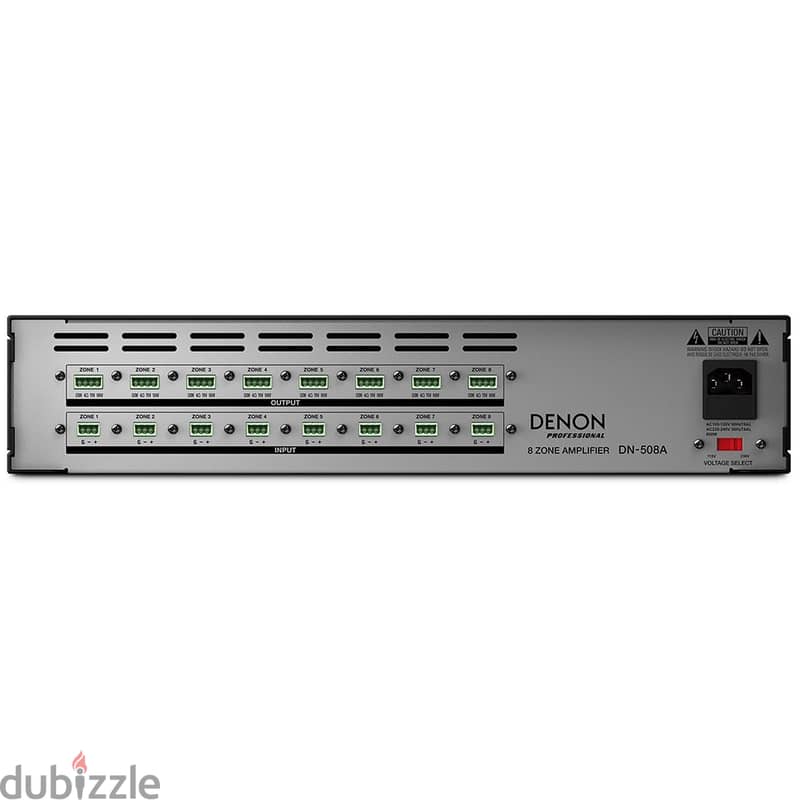

Connectors
(8) Euroblock zone outputs (com, 4 ohm, 70V, 100V)
(8) Euroblock zone inputs (ground, –, +)
(1) IEC power inlet
Power
Connection: IEC
Input Voltage: 100–240 VAC, 50/60 Hz (with voltage selector)
Fuse: T8AL (100–120 V, 60 Hz), T4AL (220–240 V, 50 Hz)
Consumption: 76.5W at 1/8 volume, 612W at full volume
Environmental
Operating Temperature Range: 0 to 50 degrees Celcius
Storage Temperature Range: -20 to 70 degrees Celcius
Operating Humidity Range: 25-85%
General
Dimensions (WDH): 19.0 x 16.3 x 3.5” (483 x 415 x 88mm)
Weight: 41.2 lbs (18.7kg)
