MUST inverters WiFi Plug14 Dongle Data Logger
جديدة, المتن
منذ ٧ ساعاتالتفاصيل
توصيلالتسليم الذاتي
الحالةجديد
نوع البائعفرد
الوصف

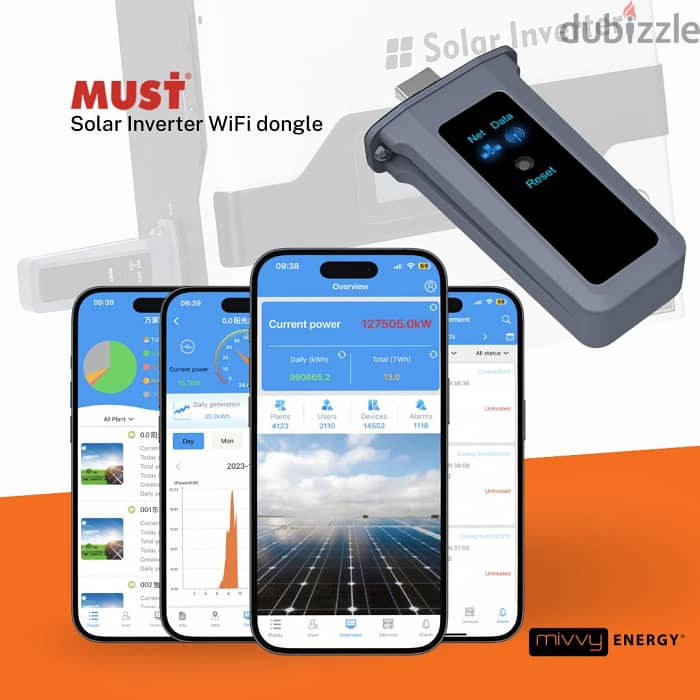

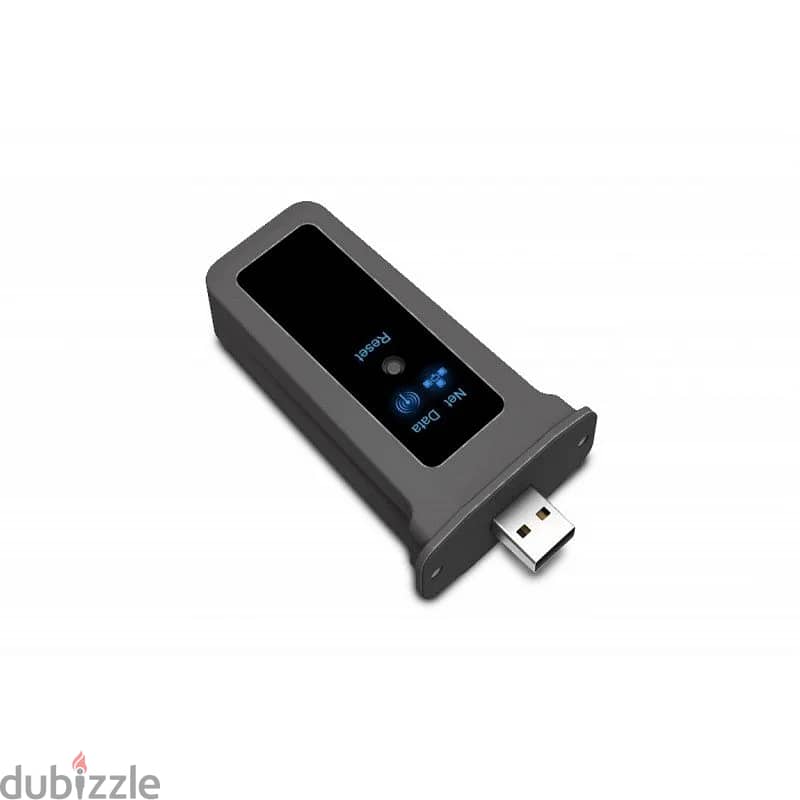

WiFi Module PLUG14 for Solar Inverters MUST
Innovative WiFi module PLUG14 specially made by MUST for solar inverters. It easily connects to your inverter via a USB port and allows reliable wireless connection. The module monitors the real-time status and performance of the device, collects and stores data.
Remote WiFi access and monitoring of the PLUG14 module
Combined with a router, the PLUG14 WiFi module can transmit data to a cloud server and display it in a mobile app or on the web. Users have complete remote access to monitor and control the inverters using the mobile app, which is available for both iOS and Android devices. The device also supports software upgrades including inverter firmware updates.
Easy installation of the PLUG14 WiFi Module and inventory compatibility
The module is designed for easy installation using plug-and-play functionality. It is compatible with MUST series solar inverters and provides IP65 protection. Compatibility includes models PV1800-VPM, PV1800-VPK, PV1800-VHM, PV1800-PRO, PV3500, PH1800-PRO, PH1800-PLUS (with outputs of 5-5.5 kW and 3 kW, EP1500 not supported) and EPPI1500 Pro (8-12 kW).
Safe and stable connection of the PLUG14 WiFi Module
The refresh rate and speed are optimized for stable operation, with automatic reconnection every 2 minutes during login and every 5 minutes during operation. An LED indicator confirms correct connection by connecting to the USB interface.
Technical specifications:
Maximum current: 500 mA (5V)
Input voltage range: DC 5V ~ DC 28 V
Interface: USB-A
Remote communication: WiFi
Baud rate: 9600 bps
Data collection period: 1.5 s
Operating frequency: 2.412 ~ 2.484 GHz
Communication protocol: IEEE 802.11b/g/n
Maximum transfer rate: 72 Mbps
Signal range: 100 m in the area without obstruction
Parameter settings: web server / application / remote server
Firmware update: remote web server
Application layer protocol: Modbus-RTU
Connection functions: mobile app connecting monitoring, parameter configuration
Dimensions (W × H × D): 54 × 99 (109 incl. plug) × 28 mm
Weight: 40g
Storage temperature: -40 ° C ~ 90 ° C
Guaranteed compatibility: MUST PV1800 series
